EDM DRILL

•

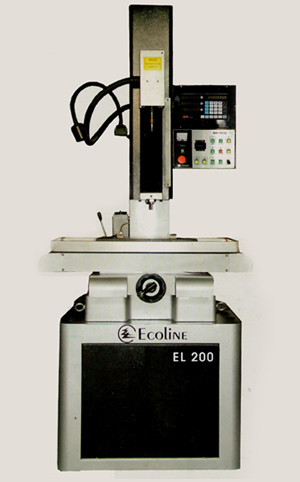

  EL 200
  Parameter / Specifiction	EL 200
  Work Table (L X W)	440 X 320
  Table Travel (X x Y	300 x 250
  Z - Axis Travel	300 + 250
  Max Drilling Depth	250
  Electrode Diameter	ø 0.3 - ø 3
  Working Liquid	Water
  Over All Machine DIM	1250x1450x2300

•

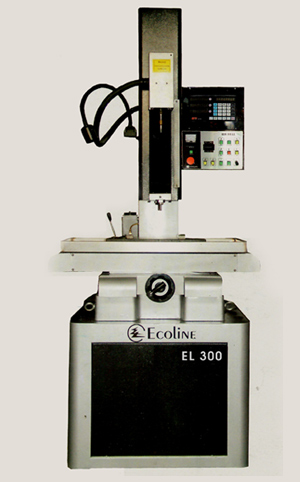

  EL 300
  Parameter / Specifiction	EL 300
  Work Table (L X W)	500 X 300
  Table Travel (X x Y	350 x 300
  Z - Axis Travel	300 + 250
  Max Drilling Depth	250
  Electrode Diameter	ø 0.3 - ø 3
  Working Liquid	Water
  Over All Machine DIM	1350x1450x2300

•

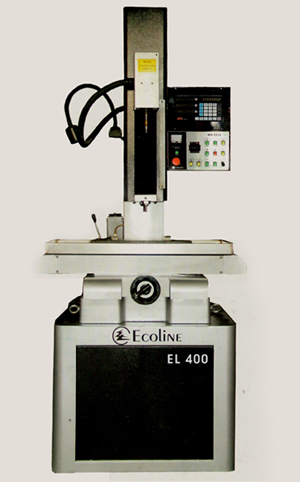

  EL 400
  Parameter / Specifiction	EL 400
  Work Table (L X W)	600 X 400
  Table Travel (X x Y	400 x 350
  Z - Axis Travel	350 + 300
  Max Drilling Depth	300
  Electrode Diameter	ø 0.3 - ø 3
  Working Liquid	Water
  Over All Machine DIM	1350x1450x2300

• • Integral Desing With Compact Footprint.
  • Adjustable Overflow.
  • Auto Positioning.
  • Closed Grain, Stress Relieved Casting For Co-ordinate Table.
  • L Shape Per Loaded Niddie Roller Bearing For Table.
  • High Precision Ball Screw Are Used In X, Y Axis.
  • High MRP During Semifinish And And Finishing Operation.
  • Fully Calibrated Technologpy.
  • Less Maintenance Cost.
  • Microcontroller Pulse Generator For High Stability.
  • Modular Type Mosfet Power Station.
  • Reverse, Mirror Function.
  • High Specific MRR.
