ECO SERIES

•

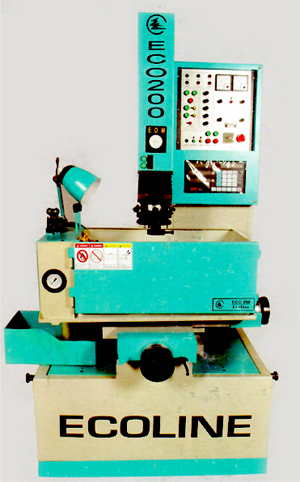

  ECO 200
  Parameter / specification	ECO 200
  Travel	280 X 220
  Work tl	420 X 250
  Z - axis tavers	200
  Electrode weight (Kg)	35
  Work tank	695 X 390 X 290
  Max. Current (amp.)	20 + 2
  MRR (mm3/min.)	125
  Electrode wear (%)	0.25
  Finish (m Ra)	0.3
  Input power (KVA)	2.5
  Dielectric capacity (LTR.)	250
  Machine weight (Kg)	750
  Over all machine dim (mm)	960 X 1080 X 1920

•

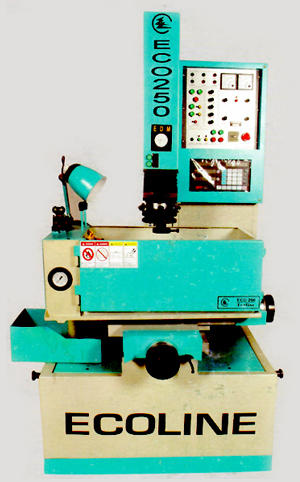

  ECO 250
  Parameter / specification	ECO 250
  Travel	300X220
  Work tl	500X300
  Z-axis tavers	250
  Electrode weight (Kg)	50
  Work tank	800X550X320
  Max. Current (amp.)	35+3
  MRR (mm3/min.)	225
  Electrode wear (%)	0.25
  Finish (m Ra)	0.3
  Input power (KVA)	3.5
  Dielectric capacity(LTR.)	400
  Machine weight (Kg)	1100
  Over all machine dim (mm)	1000X1300X2200

•

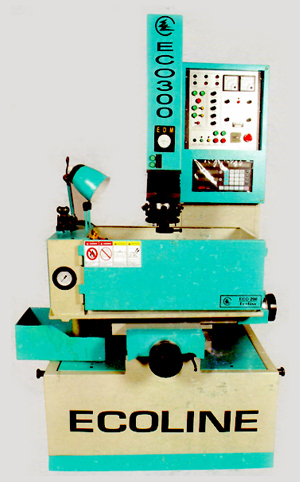

  ECO 300
  Parameter / specification	ECO 300
  Travel	350X250
  Work tl	600X400
  Z-axis tavers	250
  Electrode weight (Kg)	50
  Work tank	900X600X380
  Max. Current (amp.)	50+3
  MRR (mm3/min.)	355
  Electrode wear (%)	0.25
  Finish (m Ra)	0.3
  Input power (KVA)	4.5
  Dielectric capacity(LTR.)	450
  Machine weight (Kg)	1250
  Over all machine dim (mm)	1100X1350X2300

• • Integral Desing With Compact Footprint.
  • Adjustable Overflow.
  • Auto Positioning.
  • Closed Grain, Stress Relieved Casting For Co-ordinate Table.
  • L Shape Per Loaded Niddie Roller Bearing For Table.
  • High Precision Ball Screw Are Used In X, Y Axis.
  • High MRP During Semifinish And And Finishing Operation.
  • Fully Calibrated Technologpy.
  • Less Maintenance Cost.
  • Microcontroller Pulse Generator For High Stability.
  • Modular Type Mosfet Power Station.
  • Reverse, Mirror Function.
  • High Specific MRR.
