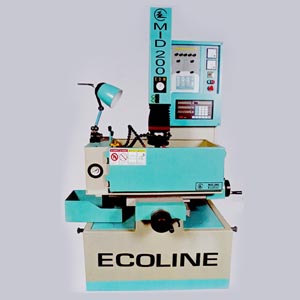

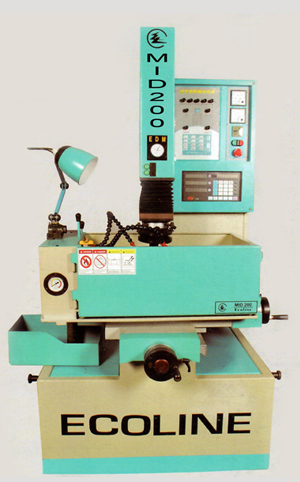

MID 200
Parameter / specification MID 200 Travel 250 X 150 Work tl 420 X 250 Z - axis tavers 200 Electrode weight (Kg) 35 Work tank 695 X 390 X 290 Max. Current (amp.) 20 + 2 MRR (mm3/min.) 140 Electrode wear (%) 0.15 Finish (m Ra) 0.25 Input power (KVA) 2.5 Dielectric capacity (LTR.) 250 Machine weight (Kg) 750 Over all machine dim (mm) 960 X 1080 X 1920
-

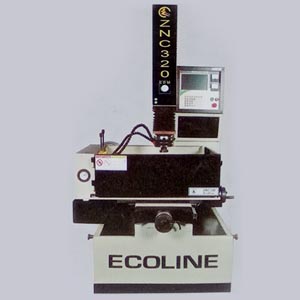

MID 320
Parameter / specification MID 250 Travel 300 X 220 Work tl 500 X 300 Z-axis tavers 250 Electrode weight (Kg) 50 Work tank 800 X 550 X 320 Max. Current (amp.) 35 + 3 MRR (mm3/min.) 250 Electrode wear (%) 0.15 Finish (m Ra) 0.25 Input power (KVA) 3.5 Dielectric capacity(LTR.) 400 Machine weight (Kg) 1100 Over all machine dim (mm) 1000 X 1300 X 2200
-

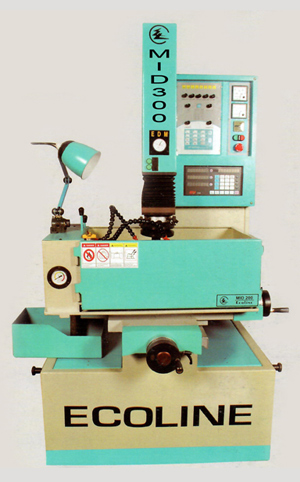

MID 300
Parameter / specification ECO 300 Travel 350 X 250 Work tl 600 X 400 Z-axis tavers 250 Electrode weight (Kg) 50 Work tank 900 X 600 X 380 Max. Current (amp.) 50 + 3 MRR (mm3/min.) 390 Electrode wear (%) 0.15 Finish (m Ra) 0.25 Input power (KVA) 4.5 Dielectric capacity(LTR.) 450 Machine weight (Kg) 1250 Over all machine dim (mm) 1100 X 1350 X 2300
