ZNC SERIES

•

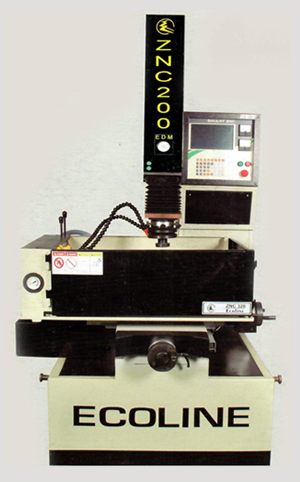

  ZNC 200
  Parameter / specification	ZNC 200
  Travel	250 X 150
  Work tl	420 X 250
  Z - axis tavers	200
  Electrode weight (Kg)	35
  Max. Job Weight (kg.)	200
  Max. Job Height From Table	410 mm
  Work tank	695 X 390 X 290
  Max. Current (amp.)	35 + 3
  MRR (mm3/min.)	250
  Electrode wear (%)	0.15
  Finish (m Ra)	0.25
  Input power (KVA)	3.5
  Dielectric capacity (LTR.)	250
  Machine weight (Kg)	750
  Over all machine dim (mm)	960 X 1080 X 1920

•

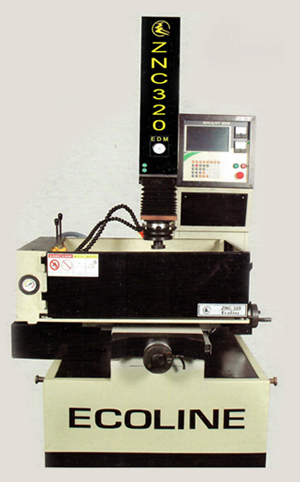

  ZNC 320
  Parameter / specification	ZNC 320
  Travel	300 X 220
  Work tl	500 X 300
  Z-axis tavers	250
  Electrode weight (Kg)	50
  Max. Job Weight (kg.)	350
  Max. Job Height From Table	580 mm
  Work tank	800 X 550 X 320
  Max. Current (amp.)	35 + 3
  MRR (mm3/min.)	250
  Electrode wear (%)	0.15
  Finish (m Ra)	0.25
  Input power (KVA)	3.5
  Dielectric capacity(LTR.)	400
  Machine weight (Kg)	1100
  Over all machine dim (mm)	1000 X 1300 X 2200

•

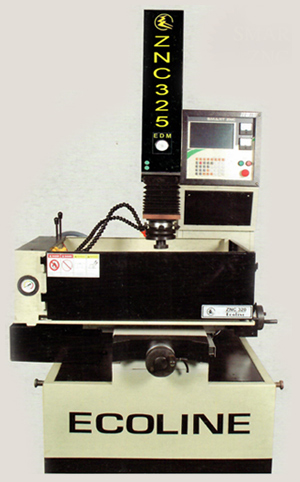

  ZNC 325
  Parameter / specification	ZNC 325
  Travel	350 X 250
  Work tl	600 X 400
  Z-axis tavers	250
  Electrode weight (Kg)	50
  Max. Job Weight (kg.)	520
  Max. Job Height From Table	700 mm
  Work tank	900 X 600 X 380
  Max. Current (amp.)	50 + 3
  MRR (mm3/min.)	390
  Electrode wear (%)	0.15
  Finish (m Ra)	0.25
  Input power (KVA)	4.5
  Dielectric capacity(LTR.)	450
  Machine weight (Kg)	1250
  Over all machine dim (mm)	1100 X 1350 X 2300

•

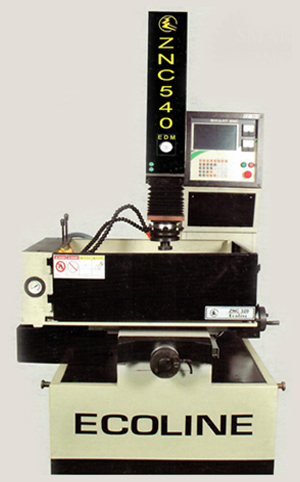

  ZNC 540
  Parameter / specification	ZNC 540
  Travel	500 X 400
  Work Table (mm)	800 X 500
  Z-axis taver (mm)	250 + 250
  Work Tank (mm)	1400X745X480
  Electrode Weight (Kg)	80
  Max. Job Weight (Kg)	1000
  Dielectric Capacity (Ltr.)	600
  Dielectric Tank Dim. (mm)	1510X745X840
  Machine Weight (Kg)	2100
  Over all machine dim (mm)	1600X1700X2100
  Max. Current (amp)	50 + 3
  MRR (mm3/min)	390
  Electrode Wear (%)	0.15
  Finish (u Ra)	0.25
  Input Power (KVA)	5

•

  ZNC 760
  Parameter / specification	ZNC 760
  Travel	700 X 600
  Work Table (mm)	1200 X 700
  Z-axis taver (mm)	300 + 300
  Work Tank (mm)	2000X1100X600
  Electrode Weight (Kg)	100
  Max. Job Weight (Kg)	2000
  Dielectric Capacity (Ltr.)	800
  Dielectric Tank Dim. (mm)	2130X1100X600
  Machine Weight (Kg)	3800
  Over all machine dim (mm)	1855X1650X2550
  Max. Current (amp)	50 + 3
  MRR (mm3/min)	390
  Electrode Wear (%)	0.15
  Finish (u Ra)	0.25
  Input Power (KVA)	5

• • Integral Desing With Compact Footprint.
  • Adjustable Overflow.
  • Auto Positioning.
  • Closed Grain, Stress Relieved Casting For Co-ordinate Table.
  • L Shape Per Loaded Niddie Roller Bearing For Table.
  • High Precision Ball Screw Are Used In X, Y Axis.
  • High MRP During Semifinish And And Finishing Operation.
  • Fully Calibrated Technologpy.
  • Less Maintenance Cost.
  • Microcontroller Pulse Generator For High Stability.
  • Modular Type Mosfet Power Station.
  • Reverse, Mirror Function.
  • High Specific MRR.
